Smart Bluetooth Control Office Troffer Lighting 2x4 1x4 2x2
Retail Price
Market Price
Please log in to see price or purchase this item
Specification Sheet:
- Description
- 右侧参数
-
- Commodity name: Smart Bluetooth Control Office Troffer Lighting 2x4 1x4 2x2
- Commodity ID: MA-HTR201FS-W
- colour: White
- warranty: 5-years
Morstar LED intelligent control embedded troffer with Mor-link system can automatically switch CCT scenes, bringing a better and healthier lighting experience.Today’s focus is on energy efficiency, flexibility, personal control, and the promotion of human health and well-being.
Morstar Intelligent White Recess Light Fixtures provide high quality light temperature and intensity in a wide range of continuously variable colors. Create dynamics by adjusting ambient light warmers or cooldowns to affect mood, support the task at hand, or create a dramatic atmosphere.
This 2*2LED recessed single arch troffer control ability to respectively correlate color temperature and intensity with simple control is the next step in LED development for commercial, educational, healthcare lighting and hospitality spaces. Unmatched flexibility and the number of available lighting environments enable users to find the right tunable white light.FEATURES:
1.Input voltage: 120-277V AC or 120-347V AC;
2.Dimmable: 0-10V(down to 10%)LED: 2835
3.Operating temperature: -22˚F - 122˚F
4. L70 Lumen Maintenance ≥100,000 at 25°C (77°F)
CONSTRUCTION:
• Steel and PC lens
• Ra:>80 (90 Optional)
• Emergency Driverm, Motion/Daylight Sensor, Surface Mount Kit
RECOMMENDED USE:
• healthcare and hospitality space
• school
• office
• Working temp:-22ºF~122ºF. Storage temp.:-40ºF~158ºF
Sample Order:
FAMILY SIZE Efficacy System
Watt
CCT Diffuser DIM 22=2'x2'
24=2'x4'
14=1'x4'
S=>110LM/W
P= >125LM/W
20=20W
30=30W
40=40W
45=45W
50=50W
35=3500K
40=4000K
50=5000K
AH=tunable white
(2700K -6500K)
White
diffuser
D=0-10V
Dimming
Driver Type Input
Voltage
Shell
color
Battery Backup and sensor CRI Seires
code
HB= dual channel
LED driver with
Bluetooth
Z=H:
120-347V
Z=L:
120-277V
A=
White
AA=with Battery
Backup and sensor
A0=with Battery Backup
0A=with sensor
00=None
8=Ra>80
9=Ra>90
just
distinguish with
sales
DIMENSION:
Size Length(L) Width(W) Height(H) 2*2 23.74”(603mm) 23.74”(603mm) 1.97”(50mm) 2*4 47.71”(1212mm) 23.74”(603mm) 1.97”(50mm) 1*4 47.71”(1212mm) 11.93”(303mm) 1.97”(50mm) TECHNICAL PARAMETER
Model Voltage Watt (W) CCT LM LM/W Ra THD 120-277 40 2700K-6500K 5000 125 >80 <20% 120-277 50 2700K-6500K 6250 125 >80 <20% 120-277 40 2700K-6500K 5000 125 >80 <20% SURFACE MOUNT KIT
Packing

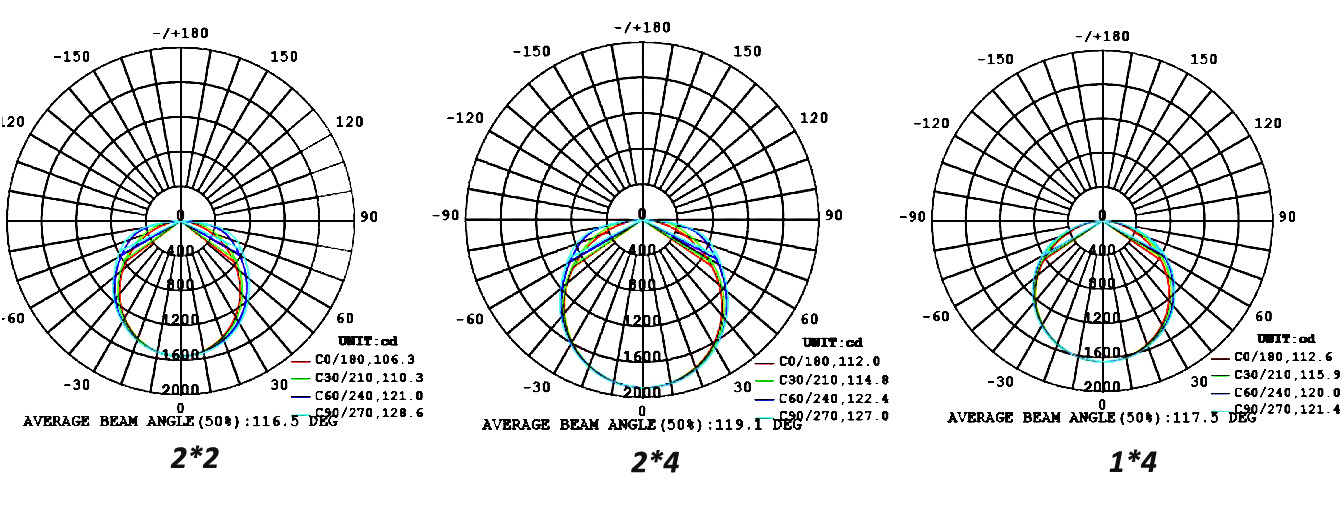

Item No. N.W G.W QTY/Carton Carton Size 6.5KG 7.5KG 2 655*655*120 12.5KG 13.5KG 2 1260*655*120 6.5KG 7.5KG 2 1260*355*180 LUMINOUS INTENSITY DISTRIBUTION CURVE:
MORLINK CONTROLS:
Morlink® Wireless Controls:
Although wireless control has been developed by leaps and bounds, there are still various problems in actual use. Some networks want simple solutions that reduce energy consumption and meet code compliance while others are more ambitious, looking to capitalize on the LED and controls savings to fund a scalable, enterprise-grade, internet of things solution. The advantage of the Morlink® wireless platform is that it can be integrated into indoor, outdoor, and high-bay environments. Morlink® wireless control provides the infrastructure to make your building face the future, easily upgrade to a networked solution, and provide the ability to integrate into an IoT solution suitable for your business.Note:
For intelligent control products, Moshida provides two solutions:
1. Purchase a Morlink controller to transform your existing product
2. You can also directly purchase the whole lamp integrated with Morlink® wireless controller. Since the sensor has been embedded in the lamp, the labor cost for installation can be greatly reduced.Main Functions of Morlink Commercial Lighting Solution：
Energy Management
• Create actions and scenes that can be automatically executed to implement energy-saving strategies.
• Link single devices or group actions with sensors, schedules, sunrise and sunset times, weather conditions, etc.• View, compare and analyze the power consumption of devices and groups by day, month or year.
Device Control
• View and control devices from a map of the lighting layout.
• Monitor device conditions including, status, operation time, energy consumption and life expectancy.
• Automatic alarms when devices change to “abnormal status” and notification to maintenance team.Human Centric Lighting
• Easily configure groups of light fixtures to sync with circadian rhythm protocols. The system will automatically adjust the CCT and brightness of the fixtures throughout the day.
FAQ：
1. How can smart lamps save money?
A:*. Smart bulbs are usually LED lamps, which are approximately 75% more efficient than incandescent lamps. If you haven’t upgraded to LED lights, just screw in the new bulb and you will see the savings.
*. When there is no one in the room, use the motion sensor to turn off the smart light switch and bulb.
*. When people are away or not, you can use the geolocation on the phone to turn off the lights. The lights are turned on and off according to the schedule.
2.Can smart lamps provide security in usage scenarios?
A: The answer is no doubt. Use motion sensors and contraction sensors to automate your lights, so you don’t need to look around for switches in the dark.
3.What are the options for smart bulbs?
A: Smart bulbs are available in a variety of sizes and colors. Whether it is your home or other commercial places, almost all types of light bulbs can be replaced with smart light bulbs.
4.Can smart lamps be dimmed?
A: You can set different lighting scenes according to your different usage needs. For example, you can adjust the color of the light according to the morning and evening of the time or the change of the season.
-
Item No.: MA-HTR201FS-W Payment: TT or L/C Product Origin: FuJian, China Color: White Min Order: 50 Lead Time: 10-30days Warranty: 5-years WARRANTY:
5-year standard warranty with labor allowance
*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -22°F to 122°F.
In Stock
