LED UFO High Bay 900A Series
Retail Price
Market Price
Please log in to see price or purchase this item
Specification Sheet:
- Description
- 右侧参数
-
- Commodity name: LED UFO High Bay 900A Series
- Commodity ID: MA-HSHB701A-100W
- colour: Black/Grey/White/Customized (Optional)
- warranty: 5-years
Based on TuyaAirTunes LED UFO Highbay 900A series high efficiency products up to 145LM/W. The product provides 4 installation options to adapt to different installation conditions.
Based on TuyaAirTunes APP Controls LED UFO Highbay light high efficiency products up to 145LM/W. The product provides 4 installation options to adapt to different installation conditions. The one-piece die-cast aluminum shell is adopted to ensure the quality while also exerting good heat dissipation. Low UGR (<28) and plug-in microwave motion sensor. It can be used to control lamps and lanterns with MORSTAR Bluetooth APP high bay light.
FEATURES:
• Input voltage: 120V-277V,AC120V-347V available
• Power factor:> 0.95，THD: <20%
• 0-10V dimming standard，Flicker-free
• Lifetime: L70 > 50,000 hours,CRI>：Ra>70
• Environmental working temperature: -22°F to 104°F（-30°to +40°）
• Stronger housing with good heat dissipation
•4 kinds of mounting available：Ceiling with loop /Ceiling with hook /Wall mounting/ Pandent mounting
CONSTRUCTION:
• Fins design, advective holes and grooves in each fin, good for heat dissipation;
• Has high impact frosted white acrylic lens
• Black polyester powder coat finish
RECOMMENDED USE:
• Warehouses,Factory
• Exhibition Room,Gas Station,Supermarket
• High Bay and Low Bay applications
WARRANTY:
5-year standard warranty with labor allowance* (further details
available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application
per the Product Data Sheet (PDS); operated <16 hrs; in ambient of
-22°F to 104°F.
Sample Order：MA-HHB901A-100W-85-H-50
FAMILY SERIES CODE WATTAGE BEAN Light EFFECT CCT OPTIONS MA-HHB=LED UFO
High Bay Light
901A 100W
150W
85° H=150LM/W 40K=4000K
50K=5000K
57K=5700K
Blank
MS=Motion Sersor
EM=Battery Backup
PS=PIR Sensor

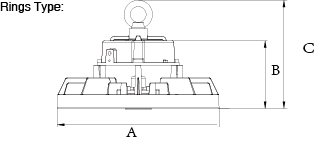

DIMENSION DRAWING:
Model A (INCH) B (INCH) C (INCH) 100W 10.09 4.24 6.76 150W 11.43 4.24 6.76 200W 13.07 4.68 7.12 240W 13.07 5.43 8.11 SPECIFICATION:
SPECIFACTION MA-HHB901A-100W MA-HHB902A-150W MA-HHB903A-200W MA-HHB904A-240W ITEM SPECIFICATION Normal Type GENERAL PERFORMANCE Power Consumption 100W 150W 200W 240W Replaces PSMH 250W 320W 420W 500W Lumens Delivered 14500Lm 21750Lm 29000Lm 34800Lm Efficacy 145LM/W（±10%） CRI Ra＞70 Color Temperature 2700-6500K Beam Angle 85° L80 Lumen maintenance ＞50000Hrs (Ta=30°C@L80) ELECTRICAL Power Factor ≥0.95 Input Voltage 100-277VAC/120-347VAC Dimming 0-10v Dimming Range：0%-100% Surge protection 4KV line-line, 6KV line-earth PHYSICAL Mounting Ceiling with loop/ Ceiling with hook/ Wall mounting/ Pandent mounting Operating Temperature -22°F to 104°F (-30°C to + 40°C) Humidity 20% to 80% RH non-condensing QUALIFICATION Qualifications UL/cUL, DLC 5.1Premium Material Usage RoHS compliant; no mercury Environment Indoor / Wet, IP65 Warranty 5 Years ACCESSORIES：
SHIPPING INFOMATION:Power OUTER BOX
(L*W*H/mm&inch)
QTY/CTN
(PCS)
N.W./CTN
(KG)
G.W./CTN
(KG)
100W 314*314*162
（12.36*12.36*6.38）
1 2 2.54 150W 347*347*162
（13.36*13.36*6.38）
1 2.33 2.93 200W 390*390*170
（15.35*15.35*6.7）
1 3.19 4.07 240W
(100-277VAC）
390*390*170
（15.35*15.35*6.7）
1 3.19 4.07 240W
(120-347VAC）
390*390*192
（15.35*15.35*7.5）
1 3.69 4.57 MORLINK CONTROLS:

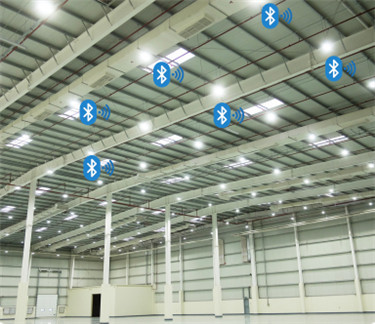

Morlink® Wireless Controls:
Although wireless control has been developed by leaps and bounds, there are still various problems in actual use.
Some networks want simple solutions that reduce energy consumption and meet code compliance while others are
more ambitious, looking to capitalize on the LED and controls savings to fund a scalable, enterprise-grade, internet of
things solution. The advantage of the Morlink® wireless platform is that it can be integrated into indoor, outdoor, and
high-bay environments. Morlink® wireless control provides the infrastructure to make your building face the future,
easily upgrade to a networked solution, and provide the ability to integrate into an IoT solution suitable for your
business.
Note:
For intelligent control products, Moshida provides two solutions:
1. Purchase a Morlink controller to transform your existing product
2. You can also directly purchase the whole lamp integrated with Morlink® wireless controller. Since the sensor
Main Functions of Morlink Commercial Lighting Solution
Energy Management
• Create actions and scenes that can be automatically
executed to implement energy-saving strategies.
• Link single devices or group actions with sensors,
schedules, sunrise and sunset times, weather condi
tions, etc.
• View, compare and analyze the power consumption
of devices and groups by day, month or year.
Device Control
• View and control devices from a map of the lighting
layout.
• Monitor device conditions including, status, operation
time, energy consumption and life expectancy.
• Automatic alarms when devices change to “abnormal
status” and notification to maintenance team.
Human Centric Lighting
• Easily configure groups of light fixtures to sync with circadian rhythm protocols. The system will automatically
adjust the CCT and brightness of the fixtures throughout the day
ACCESSORIES (For APP Smart Fixture):
MODEL NUMBER DESCRIPTION IMAGE Motion sensor Bluetooth Microwave motion sensor
-
Item No.: MA-HSHB701A-100W Payment: TT or L/C Product Origin: FuJian, China Color: Black/Grey/White/
Customized (Optional)
Min Order: 50 Product Weight: 2.54--4.57 Lead Time: 10-30days Warranty: 5-years
In Stock
