LED Troffer Light With Smart Control System
Retail Price
Market Price
Please log in to see price or purchase this item
Specification Sheet:
- Description
- 右侧参数
-
- Commodity name: LED Troffer Light With Smart Control System
- Commodity ID: MA-HSTF300E Series
- colour: White
- warranty: 5-years
AirTunes LED Troffer delivers soft, glare-free, ambient lighting in popular center-basket design. And the modern architectural ,style compliments any space, such as shool,office, hospitality,education, bank, healthcare and more.
AirTunes LED Troffer delivers soft, glare-free, ambient lighting in popular center-basket design. The center-basket LED troffer is a low-profile design that offers a clean, versatile style and volumetric
distribution. Compared with traditional light sources, the slim profile appearance and high-efficiency LED light engine can save energy and reduce maintenance costs, making it an ideal choice for new
buildings. Provides a series of dark slots, which can be used in conjunction with MORSTAR Bluetooth APP to control fixtures.
FEATURES:
• Long-life LEDs, coupled with high-efficiency drivers, provide superior quality of illumination for extended service life
• Excellent luminaire efficacy provides significant energy savings power efficiency up tp 88%
• To ensure trouble-free operation, protection is provided against output over-current, output over-voltage
• Short circuit. LED boards are easily accessible from below
• Options: CCT+Power Adjustable; APP Smart control :Bluetooth；daylight+PIR sensor
CONSTRUCTION:
• Cold-rolled steel light body increases durability. Only 2.60'' thickness
• Diffuser are extruded from impact modified polycar-bonate, easy maintenance.
RECOMMENDED USE:
• The modern architectural style compliments any space, such as shool,
office, hospitality, education, bank, healthcare and more.
• Working temp:-20~40ºC(-4~104ºF). Storage temp.:-30~60ºC
WARRANTY:
5-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -4°F to 104°F.
FAMILY
SERIES CODE
SIZE CODE
WATTAGE
CCT
OPTIONS1
OPTIONS2
MA-HTF= LED Troffer
Light
301B
22=2X2FT
24=2X4FT
26W
30K=3000K
40K=4000K
50K=5000K
57K=5700K
Blank
CP=CCT+Power
Adjustable
Blank
AP=Bluetooth+
Daylight Sensor+
PIR Sensor
DIMENSION:
SPECIFICATION:
HTF301B22 HTF302B22 HTF303B22 HTF303B24 HTF304B24 HTF305B24 ITEM SPECIFICATION Normal Type GENERAL
PERFORMANCE

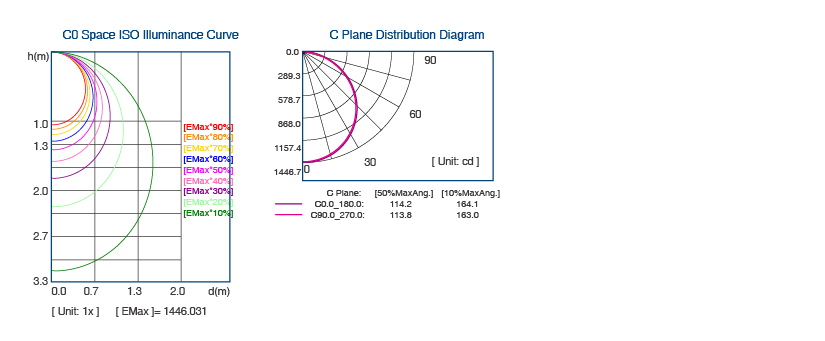

Power Consumption 26W 2X2ft 32W 2X2ft 40W 2X2f 32W 2X4ft 40W 2X4ft 50W 2X4ft Equivalent Wattage 60W CFL 80W CFL 120W CFL 80W FCL 120W CFL 140W CFL Lumens Delivered 3,250 lm 80W CFL 5,000 lm 3,250 lm 5,000 lm 6,250 lm Efficacy 125 lm/W CRI >80 Color Temperature WW:3465±245K; NW:3985±175K; DW:5028±285K L70 Lumen maintenance 100,000 hours ELECTRICAL Power Factor >0.9 Input Voltage 100-277V Dimming 1-10v Dimming Range:10%-100% PHYSICAL Mounting Suspending,Hanging, Surface mounted Operating Temperature -4°F to 104°F Humidity 20% to 80% RH non-condensing QUALIFICATION Qualifications ETL Listed, DLC Premium Material Usage RoHS compliant; no mercury Environment Indoor IP20 Warranty 5 Years warranty LUMINOUS INTENSITY DISTRIBUTION CURVE:
HTF301E
22CP
HTF302E
24CP
HTF303A
22AP
HTF304A
24AP
HTF305A
22AP
HTF306A
24AP
ITEM SPECIFICATION CCT+Power Adjustable APP Smart Fixture :
Bluetooth; daylight+PIR sensor
GENERAL
PERFORMANCE
Power Consumption 26-32-40W
2X2ft
32-40-50W
2X4ft
33W
2X2ft
50W
2X4ft
26W
2X2ft
40W
2X4ft
Equivalent Wattage 120W CFL 140W CFL 100W CFL 140W FCL 100W CFL 130W CFL Lumens Delivered 5,000 lm 6,250 lm 3,750 lm 6,250 lm 3,770 lm 5,800 lm Efficacy 125 lm/W 125 lm/W 125 lm/W CRI >80 >80 Color Temperature WW:3465±245K;
NW:3985±175K;
DW:5028±285K
WW:3465±245K;
NW:3985±175K;
DW:5028±285K
L70 Lumen maintenance 100,000 hours 100,000 hours ELECTRICAL Power Factor >0.9 Input Voltage 100-277V Dimming 1-10v Dimming Range:10%-100% PHYSICAL Mounting Suspending,Hanging, Surface mounted Operating Temperature -4°F to 104°F Humidity 20% to 80% RH non-condensing QUALIFICATION Qualifications ETL Listed, DLC Premium Material Usage RoHS compliant; no mercury Environment Indoor IP20 Warranty 5 Years warranty ACCESSORIES (For APP Smart Fixture):
MODEL NUMBER DESCRIPTION IMAGE MA-SW101S Surface-mounted Bluetooth Wall-Switch(US)
With Bottom Cap
MA-SW101R Recessed Bluetooth Wall-Switch(US)
W/out Bottom Cap
-
Item No.: MA-HSTF300E Series Payment: TT or L/C Product Origin: FuJian, China Min Order: 30 Color: White Lead Time: 10-30days Warranty: 5-years
In Stock
