Dusk-To-Dawn Photocell Sensor LED Parking Lot Lights

Retail Price

Market Price

Please log in to see price or purchase this item

Specification Sheet:

  • Description
  • 右侧参数
    • Commodity name: Dusk-To-Dawn Photocell Sensor LED Parking Lot Lights
    • Commodity ID: MA-EPL700A SERIES

    Mostar's 5000K outdoor parking lot light use the best-performing LED technology, which can output 135 lumens/watt to replace the traditional HDS lights, which can reduce energy consumption by 66%. At the same time, our products have passed DLC certification and can get more rebates.

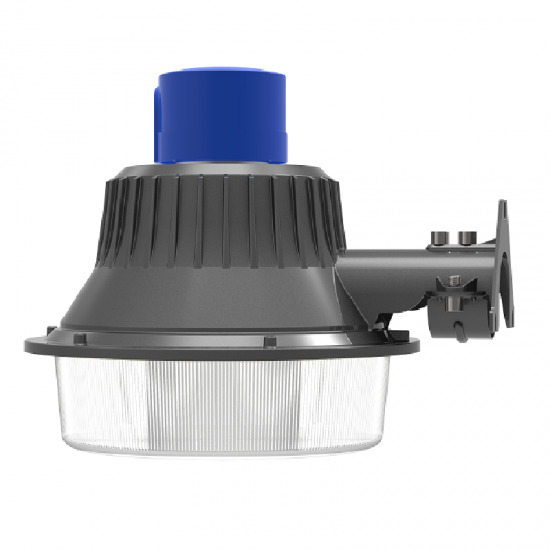

    Adjustable Arm Mount Dusk-to-Dawn Photocell Sensor LED Parking Lot Light



    A stunning blend of performance, value, and aesthetics, the 700A series parking lot lights are available in a wide range of lumen packages to address a variety of outdoor lighting needs, such as roadways, auto dealership parking lots, and other vast outdoor areas. IP66-rated luminaires deliver a minimum of 130 lumens per watt and can replace up to 1000 W of MH outdoor lighting. Compared with traditional fixtures, the service life is longer and the energy consumption is lower, which can save a lot on electricity and maintenance costs.



    Morstar is a trusted, global company with a keen insight into the market. We know lighting and provide products with excellent quality, reliability, and functionality.







    FEATURES:

    • 5 Types of Mounting Brackets: Easy to Exchange Different Brackets
    • High Quality Drivers Meawell & Inventronics 100-277 Vac, 277-480 Vac
    • Distribution Optional: Type III, Type IV, Type V
    • SMD3030 High Performance Chips, 130 lm/W, L70 > 100,000 hours
    • High Efficiency PC Lens, Type 3, Type 4, Type 5 Distribution
    • Surge Protection 10KA
    • IP rating: IP66





    SPECIFICATION

    EFL701A

    EFL702A

    EFL703A

    EFL704A

    EFL705A

    EFL706A

    Power Consumption

    75W

    100W

    150W

    200W

    240W

    300W

    Equivalent Wattage

    175W HID

    250W HID

    400W HID

    750W HID

    750W HID

    1000W HID

    Lumens Delivered

    11,250 lm

    15,000 lm

    22,500 lm

    30,000 lm

    36,000 lm

    45,000 lm

    Efficacy

    130 lm/W / 150 lm/W

    CRI

    >70 / 80

    Color Temperature

    3000K / 4000K / 5000K /5700K

    Input Voltage

    120-277V, 277-480V



    CONSTRUCTION:

    • Die-cast aluminum housing
    • Driver Box Is Simple To Open
    • Corrosion-resistant powder coat finish



    RECOMMENDED USE:

    • Parking areas
    • Commercial security lighting
    • ideal for area lighting, residential streets, loading platforms, etc.



    WARRANTY:

    10-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties) Warranty Restrictions: The product must be rated for the application per the Product Data Sheet (PDS), run for 16 hours, and be operated in a temperature range of -40 °F to 122 °F.





    APPLICATION:

    Parking Garage LED Light



    FAQ:

    1. What`s the warranty on the lamp?
    - We offer a 5-year warranty on UL/DLC items and a 2-year warranty on all other items.
    2. Can I have a sample order for LED lights?
    Yes, we welcome sample orders for LED lights to test and check quality. Mixed samples are acceptable.
    3. What about the lead time?
    Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
    4. What about the quality?
    Select high-quality materials.
    48-hour aging test to end defective products
    - Quality control testing prior to shipment
    - A good package will provide security.
    5. Where are your main markets?
    North American and Latin American And we have LED lighting distribution warehouses in California, Texas, and Michigan.
    6. Can you design a new model?
    - Yes, we can create a new mold based on your drawings and produce it.
    7.Any suggestion? Please contact us.

    • Item No.: MA-EPL700A SERIES

    • Payment: TT or L/C

    • Color: Brown/White

    • Min Order: 50

    • Lead Time: 10-30days

Quantity
-
+

In Stock

Buy It Now
