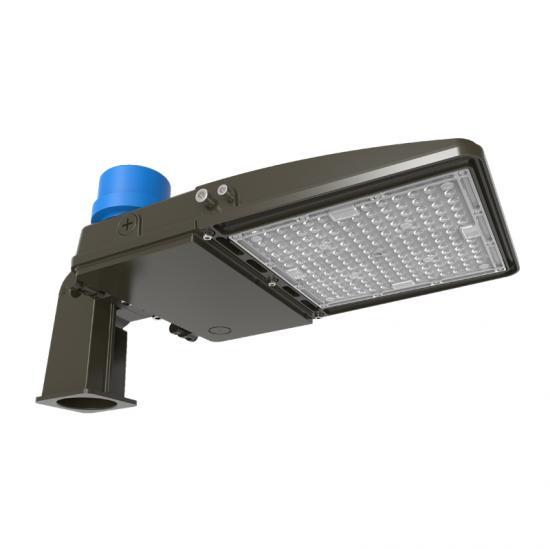

300W Intelligent Shoebox Light Fixture
Retail Price
Market Price
Please log in to see price or purchase this item
Specification Sheet:
- Description
- 右侧参数
-
- Commodity name: 300W Intelligent Shoebox Light Fixture
- Commodity ID: MA-EPL706AS-300W
- warranty: 5-year standard warranty
Intelligent shoebox with motion sensor adopts a new installation combined boom, sliding clamp and 180° adjustable steering knuckle, make it more flexible lighting direction to deal with different lighting scenes.
At the same time, the smart LED shoebox light uses 3030 LED lamp beads, which can produce 135–150 lm per watt to meet the needs of users in a wider range of outdoor areas.
The shell adopts a heavy-duty aluminum process and is coated with a polyester powder protective layer, which has good heat dissipation and compression structure as well as anti-corrosion and rust-proof characteristics.
FEATURES:
1. New Structure Design, More Flexible Lighting Direction
2. High-quality drivers (100-277 vac/100-347 vac),surge protection (10 kv)
3. Power Selectable For Simple Inventory Reserve
4. Up To 140 lm/watt at CRI 80 lumens output, L70>100,000 hours
5. Photocell, Daylight Harvest, Microwave Sensor, and 1-10v Dim Optional
6. Morlink Zigbee Intelligent Control Technology makes things easier, safer, and more efficient.
CONSTRUCTION:
cast aluminum design for better cooling and easy replacement.
RECOMMENDED USE:
The traditional architectural style matches most of the scenes, such as parking lots, roads, seaside areas, outdoor applications, etc.
Operating Temperature: -40°F to 122°F (-40°C to +50°C)
Sample Order：MA-EPL706AS-300W
FAMILY SERIES CODE WATTAGE CCT BREAKET BEAM ANGLE OPTIONS MA-EPL=LED Parking Lot Light 706 300W
30K=3000K
40K=4000K
50K=5000K
selectable
Blank
A=Slip Filter
B=Arm;B2=Arm(Adj) C=Trunnion;E=Yoke
T2=Type II
T3=Type III
T4=Type IV
T5=Type V
Blank
Ms=Motion Sersor Pc=Photocell
DIMENSION CHART:
POWER L (INCH) W (INCH) H (INCH) 300W 30.91 14.80 3.98
SPECIFICATION:
ITEM SPECIFICATION DETAILS GENERAL
PERFORMANCE
Power Consumption 300W Equivalent Wattage 600W MH Lumens Delivered 42000LM Efficacy 135-150LM/W（±10%） CRI Ra>70/80 Color Temperature 4000K/5000K/5700K Beam Angle TYPEII, TYPEIII, TYPEIV, TYPEV L70 Lumen maintenance 70000Hrs (Ta=30°C@L80) ELECTRICAL Power Factor ≥0.95 Input Voltage 120-277VAC/120-347VAC Surge Protection 10KA Dimming 0-10V dimmable PHYSICAL Mounting Slip Fitter/ Direct Mount/Yoke Mount/ Square Bracket Operating Temperature -40°F to 122°F QUALIFICATION Qualifications UL/cUL, DLC5.1Premium Material Usage CE RoHS compliant; no mercury Environment outdoor / Wet, IP65 Warranty 5 Years Warranty
LUMINOUS INTENSITY DISTRIBUTION CURVE:
1. MA-EPL706AS-300W

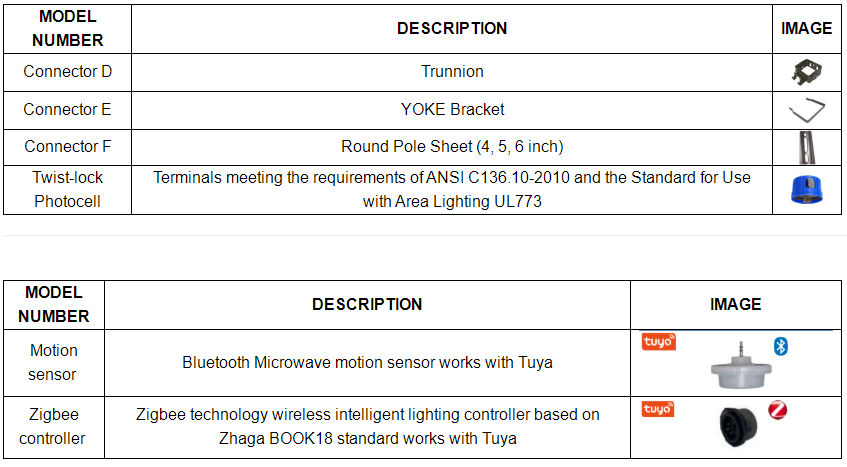

ACCESSORIES：
PACKING/WEIGHT INFORMATION:
Fixture Outer box
(L*W*H)
Qty/Ctn
(pcs)
N.W/pcs
(Ibs/Kg)
G.W/pcs
(Ibs/Kg)
Remarks Fixture 32.28"*15.75"*5.12" 820*400*130mm 1 9.8/21.61 11/24.25 1.0M cable
MORLINK CONTROLS:
Morlink® Wireless Controls:
Although wireless control has been developed by leaps and bounds, there are still various problems in actual use. Some networks want simple solutions that reduce energy consumption and meet code compli-ance while others are more ambitious, looking to capitalize on the LED and controls savings to fund a scalable, enterprise-grade, internet of things solution. The advantage of the Morlink® wireless platform is that it can be integrated into indoor, outdoor, and high-bay environments. Morlink® wireless control provides infrastructure based on BLUETOOTH and ZIGBEE technology, allowing your building to face the future, easily upgrade to network solutions, and provide the ability to integrate into IoT solutions suitable for your business.Note:
For intelligent control products, Morstar provides two solutions:
1. Purchase a Morlink controller to transform your existing product
2. You can also directly purchase the whole lamp integrated with Morlink® wireless controller. Since the sensor has been embedded in the lamp, the labor cost for installation can be greatly reduced.Main Functions of Morlink Commercial Lighting Solution
Energy Management
Create actions and scenes that can be automatically executed to implement energy-saving strategies.
Link single devices or group actions with sensors, schedules, sunrise and sunset times, weather condi tions, etc.
View, compare and analyze the power consumption of devices and groups by day, month or year.
Device Control View and control devices from a map of the lighting layout.
Monitor device conditions including, status, operation time, energy consumption and life expectancy.
Automatic alarms when devices change to “abnormal status” and notification to maintenance team.Human-centered lighting
Easily configure groups of light fixtures to sync with circadian rhythm protocols. The system will automatically adjust the CCT and brightness of the fixtures throughout the day.
-
Item No.: MA-EPL706AS-300W Min Order: 200 Lead Time: 10-30Days Warranty: 5-year standard warranty
