2FT Intelligent LED Linear High Bay
Retail Price
Market Price
Please login to see price or purchase this item
Relevant Accessories：
- Description
- 右侧参数
-
- Commodity name: 2FT Intelligent LED Linear High Bay
- Commodity ID: MA-HSLB101D-110W
- colour: White
- warranty: 5-years
LED linear high bay lights based on Mor-link intelligent control system have been widely used in the indoor and outdoor lighting of commercial, industrial and residential spaces in modern society. It is the trend of the lighting market in the future.
The led linear high bay light is an ideal choice for high-performance, long-life replacement of HID and linear fluorescent high bay lights. Various color temperatures and light uniformity will ensure comfortable and safe conditions, thereby maximizing the productivity of warehouses, large shops and stadiums, and other industrial and commercial venues. The use of special structure and thermometric separation technology can increase the efficiency of the lamp to 135lm/W and help extend the service life. Bluetooth microwave motion sensors or PIR sensors can be installed and combined with Morlink wireless lighting control system, to achieve intelligent lighting. The beam angle is 90°, which is adjustable though changing light panel direction.
FEATURES:
• Input voltage: 120V-277V，120V-347V.
• Power factor: > 0.9，THD: <20%.
• 1-10V dimming standard，Flicker-free.
• Samsung Led chip lifetime: L70 > 50,000 hours, CRI> 80.
• High quality non-isolated driver, driver efficiency＞90%.
• Environmental working temperature: -20°C / -4°F to 50°C /122°F
suitable for dry or damp places.
• 4000K / 5000K/ 5700 provides crisp and invigorating lighting.
• V-hook Pedant Mounting and chain mounting accessories included.
CONSTRUCTION:
• 22 gauge durable steel housing.
• Has high impact frosted white acrylic lens.
• White polyester powder coat finish.
RECOMMENDED USE:
• Warehouses
• Stadiums
• Industrial
• Retail
• High Bay and Low Bay applications
WARRANTY:
5-year standard warranty
Main order: MA-HLHB202ES-110W-H-50K
FAMILY
SIZE CODE
SERIES
WATTAGE
Efficiency
CCT
OPTIONS
MA-HLHB=LED
LINEAR High Bay Light
202ES
Smart
110W
H
50K=5000K
Blank
MS=Motion Sensor
PS=PIR Sensor
S=Smart Light
Dimension Drawing：
Part No A B C D E 110W 9.6" 23.83" 0.79" 1.97" 2.89"
SPECIFICATION:
ITEM SPECIFICATION DETAILS GENERAL
PERFORMANCE
Power Consumption 110W Equivalent Wattage 250W HID Lumens Delivered 14850lm Efficacy 135lm/W CRI ＞80 Color Temperature 4000K / 5000K / 5700K L70 Lumen maintenance 50,000 hours ELECTRICAL Power Factor >0.9 Input Voltage 120-277V,120-347V Dimming 1-10v Dimming Range:10%-100% Surge Protection Surge protection: 4KV line-line, 6KV line-earth PHYSICAL Mounting Suspending,Pole Pandent,Surface mounted Operating Temperature -4°F~122°F Humidity 20% to 80% RH non-condensing QUALIFICATION Qualifications UL Listed, DLC Premium Material Usage RoHS compliant; no mercury Environment Indoor / Wet Warranty 5 years warranty LUMINOUS INTENSITY DISTRIBUTION CURVE:
ACCESSORIES (For APP Smart Fixture):
MORLINK CONTROLS:
Morlink® Wireless Controls:
Although wireless control has been developed by leaps and bounds, there are still various problems in actual use. Some networks want simple solutions that reduce energy consumption and meet code compliance while others are more ambitious, looking to capitalize on the LED and controls savings to fund a scalable, enterprise-grade, internet of things solution. The advantage of the Morlink® wireless platform is that it can be integrated into indoor, outdoor, and high-bay environments. Morlink® wireless control provides the infrastructure to make your building face the future, easily upgrade to a networked solution, and provide the ability to integrate into an IoT solution suitable for your business.
Note:
For intelligent control products, Moshida provides two solutions:
1. Purchase a Morlink controller to transform your existing product.
2. You can also directly purchase the whole fixture integrated with Morlink® wireless controller.

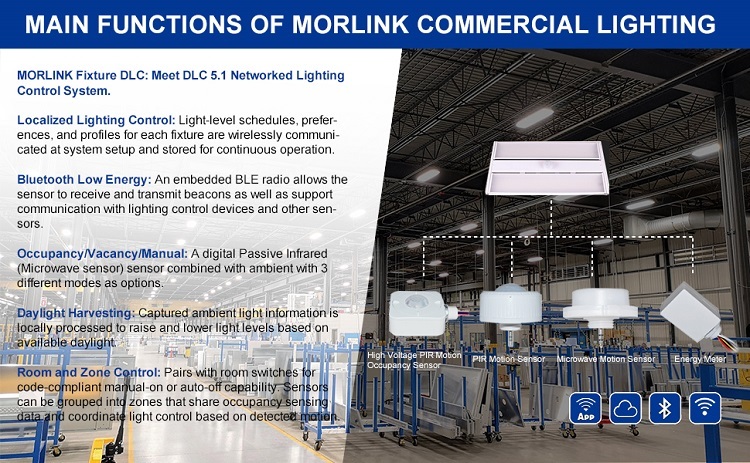

Main Functions of Morlink Commercial Lighting Solution：
Energy Management• Create actions and scenes that can be automatically executed to implement energy-saving strategies.
• Link single devices or group actions with sensors, schedules, sunrise and sunset times, weather condi tions, etc.
• View, compare and analyze the power consumption of devices and groups by day, month or year.
Device Control• View and control devices from a map of the lighting layout.
• Monitor device conditions including, status, operation time, energy consumption and life expectancy.
• Automatic alarms when devices change to “abnormal status” and notification to maintenance team.
Human Centric LightingEasily configure groups of light fixtures to sync with circadian rhythm protocols. The system will automatically adjust the CCT and brightness of the fixtures throughout the day.
INSTALLATION:
FAQ：
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting distribution warehouses in California，Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
7.Any suggestion? Please contact us. -
Item No.: MA-HSLB101D-110W Payment: TT or L/C Product Origin: FuJian, China Color: White Min Order: 30 Lead Time: 10-30days Warranty: 5-years
In Stock
隐藏域元素占位
- Description
- 右侧参数
-
The led linear high bay light is an ideal choice for high-performance, long-life replacement of HID and linear fluorescent high bay lights. Various color temperatures and light uniformity will ensure comfortable and safe conditions, thereby maximizing the productivity of warehouses, large shops and stadiums, and other industrial and commercial venues. The use of special structure and thermometric separation technology can increase the efficiency of the lamp to 135lm/W and help extend the service life. Bluetooth microwave motion sensors or PIR sensors can be installed and combined with Morlink wireless lighting control system, to achieve intelligent lighting. The beam angle is 90°, which is adjustable though changing light panel direction.
FEATURES:
• Input voltage: 120V-277V，120V-347V.
• Power factor: > 0.9，THD: <20%.
• 1-10V dimming standard，Flicker-free.
• Samsung Led chip lifetime: L70 > 50,000 hours, CRI> 80.
• High quality non-isolated driver, driver efficiency＞90%.
• Environmental working temperature: -20°C / -4°F to 50°C /122°F
suitable for dry or damp places.
• 4000K / 5000K/ 5700 provides crisp and invigorating lighting.
• V-hook Pedant Mounting and chain mounting accessories included.
CONSTRUCTION:
• 22 gauge durable steel housing.
• Has high impact frosted white acrylic lens.
• White polyester powder coat finish.
RECOMMENDED USE:
• Warehouses
• Stadiums
• Industrial
• Retail
• High Bay and Low Bay applications
WARRANTY:
5-year standard warranty
Main order: MA-HLHB202ES-110W-H-50K
FAMILY
SIZE CODE
SERIES
WATTAGE
Efficiency
CCT
OPTIONS
MA-HLHB=LED
LINEAR High Bay Light
202ES
Smart
110W
H
50K=5000K
Blank
MS=Motion Sensor
PS=PIR Sensor
S=Smart Light
Dimension Drawing：
Part No A B C D E 110W 9.6" 23.83" 0.79" 1.97" 2.89"
SPECIFICATION:
ITEM SPECIFICATION DETAILS GENERAL
PERFORMANCE
Power Consumption 110W Equivalent Wattage 250W HID Lumens Delivered 14850lm Efficacy 135lm/W CRI ＞80 Color Temperature 4000K / 5000K / 5700K L70 Lumen maintenance 50,000 hours ELECTRICAL Power Factor >0.9 Input Voltage 120-277V,120-347V Dimming 1-10v Dimming Range:10%-100% Surge Protection Surge protection: 4KV line-line, 6KV line-earth PHYSICAL Mounting Suspending,Pole Pandent,Surface mounted Operating Temperature -4°F~122°F Humidity 20% to 80% RH non-condensing QUALIFICATION Qualifications UL Listed, DLC Premium Material Usage RoHS compliant; no mercury Environment Indoor / Wet Warranty 5 years warranty LUMINOUS INTENSITY DISTRIBUTION CURVE:
ACCESSORIES (For APP Smart Fixture):
MORLINK CONTROLS:
Morlink® Wireless Controls:
Although wireless control has been developed by leaps and bounds, there are still various problems in actual use. Some networks want simple solutions that reduce energy consumption and meet code compliance while others are more ambitious, looking to capitalize on the LED and controls savings to fund a scalable, enterprise-grade, internet of things solution. The advantage of the Morlink® wireless platform is that it can be integrated into indoor, outdoor, and high-bay environments. Morlink® wireless control provides the infrastructure to make your building face the future, easily upgrade to a networked solution, and provide the ability to integrate into an IoT solution suitable for your business.
Note:
For intelligent control products, Moshida provides two solutions:
1. Purchase a Morlink controller to transform your existing product.
2. You can also directly purchase the whole fixture integrated with Morlink® wireless controller.Main Functions of Morlink Commercial Lighting Solution：
Energy Management• Create actions and scenes that can be automatically executed to implement energy-saving strategies.
• Link single devices or group actions with sensors, schedules, sunrise and sunset times, weather condi tions, etc.
• View, compare and analyze the power consumption of devices and groups by day, month or year.
Device Control• View and control devices from a map of the lighting layout.
• Monitor device conditions including, status, operation time, energy consumption and life expectancy.
• Automatic alarms when devices change to “abnormal status” and notification to maintenance team.
Human Centric LightingEasily configure groups of light fixtures to sync with circadian rhythm protocols. The system will automatically adjust the CCT and brightness of the fixtures throughout the day.
INSTALLATION:
FAQ：
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting distribution warehouses in California，Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
7.Any suggestion? Please contact us. -
Item No.: MA-HSLB101D-110W Payment: TT or L/C Product Origin: FuJian, China Color: White Min Order: 30 Lead Time: 10-30days Warranty: 5-years
