24V Occupancy Sensor Smart Control Accessories
Retail Price
Market Price
Please log in to see price or purchase this item
Specification Sheet:
- Description
- 右侧参数
-
- Commodity name: 24V Occupancy Sensor Smart Control Accessories
Morstar Low Voltage Microwave Motion Sensor that dims lighting from high to low based on motion. This slim sensor is designed to fit inside the bottom of the luminaire body.
-
Item No.:
MA-CME201A -
Payment:
TT or L/C -
Product Origin:
FuJian， China -
Color:
White -
Min Order:
50 -
Lead Time:
10-30days
Product Name: 24V Low Voltage Microwave Motion Sensor
Description:
The Morstar 24V occupancy sensor uses microwave sensing technology to react to changes in motion within the coverage area. Once the sensor stops detecting motion and the time delay has elapsed, the light will go from high mode to low mode and, if needed, finally to the off position. Sensors must *see* the movement of people or moving objects directly to detect them, so sensor luminaire placement and lens selection must be carefully considered. Avoid placing the sensor where obstacles may block the sensor's line of sight.
Features:
*Lighting controls meet design lights consortium (DLC) networked lighting control system technical requirements(Version NLC5 June 23,2020).
*Quicky connect and adjust different sensor angle.
*Easy commissioning with Morlink App.
*Bluetooth network with SaaS working by computer
*Individual addressability and/or grouping.
*Time clock scheduling for individual lights, groups or scenes.
*Multi-level dimming: manual ON/OFF automatic ON/OFF, and automatic partial ON/OFF .daylight harvesting control capability.
*5 Year Warranty
Specificaton:
Power supply 12V-24V DC, >50mA Dim control output 0-10V, max. 25mA sinking current HF System 5.8GH2175MHZ Transmission power <0.2mW Detection radius 20%/50%/75%/100%(1-8m) Mounting height Max 50ft.(15metors) Timo setting 10s/1 min/5min/1 Omin/15min/20min/30min/60min Light-control 24H/10LUX/30LUX/50LUX Temperature -4・F - +140eF (-20eC - *60*0 IP rating IP65
Dimension Chart:

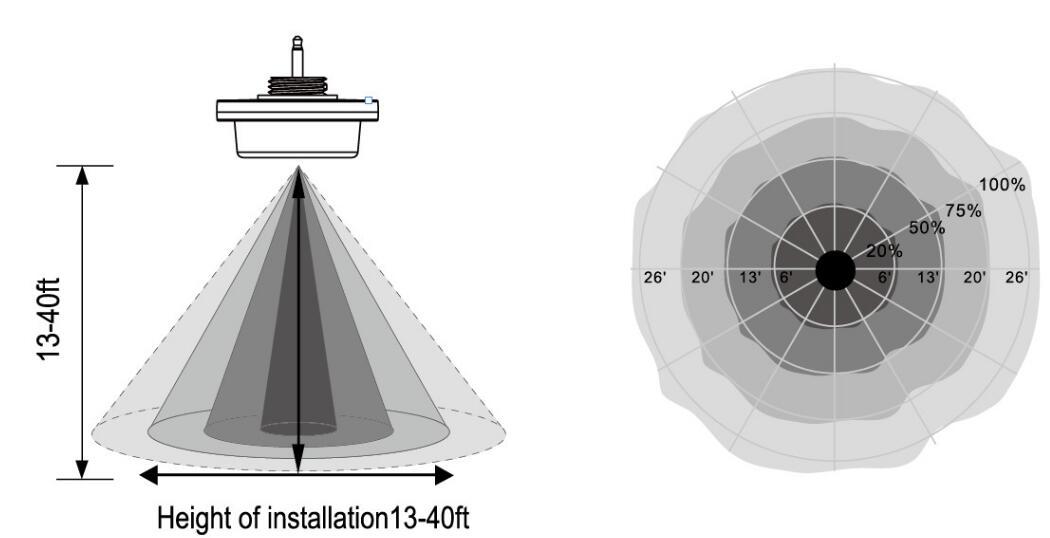

Detection Coverage:
FAQ:
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting distribution warehouses in California，Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
7.Any suggestion? Please contact us.
In Stock
隐藏域元素占位
- Description
- 右侧参数
-
-
Item No.:
MA-CME201A -
Payment:
TT or L/C -
Product Origin:
FuJian， China -
Color:
White -
Min Order:
50 -
Lead Time:
10-30days
Product Name: 24V Low Voltage Microwave Motion Sensor
Description:
The Morstar 24V occupancy sensor uses microwave sensing technology to react to changes in motion within the coverage area. Once the sensor stops detecting motion and the time delay has elapsed, the light will go from high mode to low mode and, if needed, finally to the off position. Sensors must *see* the movement of people or moving objects directly to detect them, so sensor luminaire placement and lens selection must be carefully considered. Avoid placing the sensor where obstacles may block the sensor's line of sight.
Features:
*Lighting controls meet design lights consortium (DLC) networked lighting control system technical requirements(Version NLC5 June 23,2020).
*Quicky connect and adjust different sensor angle.
*Easy commissioning with Morlink App.
*Bluetooth network with SaaS working by computer
*Individual addressability and/or grouping.
*Time clock scheduling for individual lights, groups or scenes.
*Multi-level dimming: manual ON/OFF automatic ON/OFF, and automatic partial ON/OFF .daylight harvesting control capability.
*5 Year Warranty
Specificaton:
Power supply 12V-24V DC, >50mA Dim control output 0-10V, max. 25mA sinking current HF System 5.8GH2175MHZ Transmission power <0.2mW Detection radius 20%/50%/75%/100%(1-8m) Mounting height Max 50ft.(15metors) Timo setting 10s/1 min/5min/1 Omin/15min/20min/30min/60min Light-control 24H/10LUX/30LUX/50LUX Temperature -4・F - +140eF (-20eC - *60*0 IP rating IP65
Dimension Chart:
Detection Coverage:
FAQ:
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting distribution warehouses in California，Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
7.Any suggestion? Please contact us. -
